Bottle Top Dispensers, Socorex Calibrex™ universal 520 Series

Overview

Designed for performance handling of liquids from a large variety of bottles and flasks, the Calibrex™ digital dispensers from Socorex combine the latest in dosing technology, in high-tech materials and ergonomic design. The universal 520 Series have a simple very sturdy construction, smooth action and broad chemical compatibility. There are three models with adjustable volumes.

The friendly digital volume setting adjustment is fast and precise even with a gloved hand.

These units are manufactured and tested to fully comply with current safety regulations. Calibrex™ dispensers have 32 mm base thread.

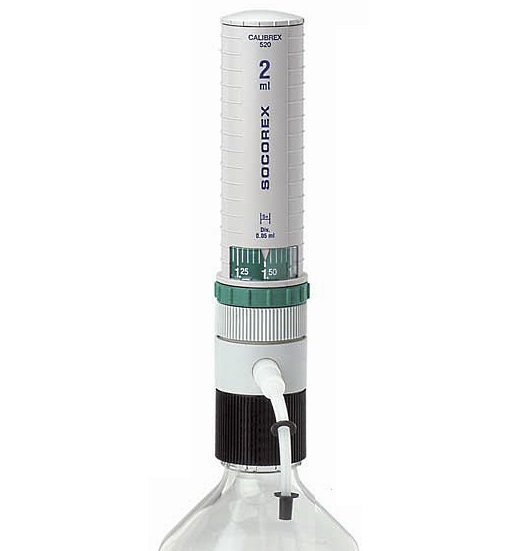

The white topped Calibrex™ universal 520 Series dispensers are supplied with one each of 28, 40 and 45 mm polypropylene adapters and a 300 mm PTFE feed tube. They are available in a range with maximum volumes of 2, 5 and 10 mL.

Contact sales@rosesci.com for more information including other accessories and a chemical compatibility chart.

Fixed volume dispensers in these series are also available; please call or email for price and availability.

Features and Benefits of the Caibrex universal 520 Bottle Top Dispensers:

Teflon coated plunger prevents “freezing” when alkaline solutions are dispensed
Superior chemical resistance
No risk of setting errors with the digital volume display
Easy and fast volume selection
Autoclavable up to 121 ºC
Simple construction; no tool is required for disassembling
In-lab calibration
Also available in fixed volume, on request
Long lasting performance stability
Two-year warranty against manufacturing defects

Specifications (Click here):

Bottle Top Dispensers, Socorex Calibrex™ universal 520 Series

Number	Description	Price $
520.002	Calibrex universal 520 Bottle Top Dispenser, 0.25 – 2 mL	575.00
520.005	Calibrex universal 520 Bottle Top Dispenser, 1 – 5 mL	575.00
520.010	Calibrex universal 520 Bottle Top Dispenser, 1 – 10 mL	575.00
1.524	Jet-Pen Extension Tubing Set for up to 20 mL volumes, 60 mm L × 2.2 mm Ø	185.76
GLP22	Bottle-neck Adapter, 22 mm (polypropylene, black)	27.49
GLP25	Bottle-neck Adapter, 24 mm (polypropylene, black)	27.49
GLP28	Bottle-neck Adapter, 28 mm (polypropylene, black)	27.49
GLP30	Bottle-neck Adapter, 30 mm (polypropylene, black)	27.49
GLP34	Bottle-neck Adapter, 34 mm (polypropylene, black)	38.70
GLP36	Bottle-neck Adapter, 36 mm (polypropylene, black)	38.70
GLP38	Bottle-neck Adapter, 38 mm (polypropylene, black)	38.70
GLP40	Bottle-neck Adapter, 40 mm (polypropylene, black)	38.70
GLP45	Bottle-neck Adapter, 45 mm (polypropylene, black)	38.70
GLT36	Bottle-neck Adapter, 36 mm (PTFE, White)	171.20
GLT38	Bottle-neck Adapter, 38 mm (PTFE, White)	171.20
GLT40	Bottle-neck Adapter, 40 mm (PTFE, White)	171.20
GLT45	Bottle-neck Adapter, 45 mm (PTFE, White)	171.20
314.0500PE	Amber glass bottle, square, Plastic Coated, 500 mL with 32 mm thread	49.20
314.1000PE	Amber glass bottle, square, Plastic Coated, 1000 mL with 45 mm thread	69.20
314.2500PE	Amber glass bottle, round, Plastic Coated, 2500 mL with 45 mm thread	84.00
314.0100	Amber glass bottle, square, 100 mL Ø 32 mm	18.96
314.0250	Amber glass bottle, square, 250 mL Ø 32 mm	18.96
314.0500	Amber glass bottle, square, 500 mL Ø 32 mm	18.96
314.1000	Amber glass bottle, square, 1000 mL Ø 45 mm	26.40
314.2500	Amber glass bottle, round, 2500 mL Ø 45 mm	34.80

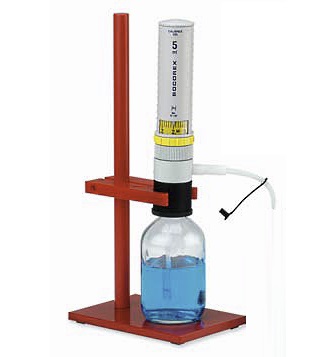

320.SB050	Dispenser work station for small size bottles using 520 or 521 bottle top dispensers	186.50
