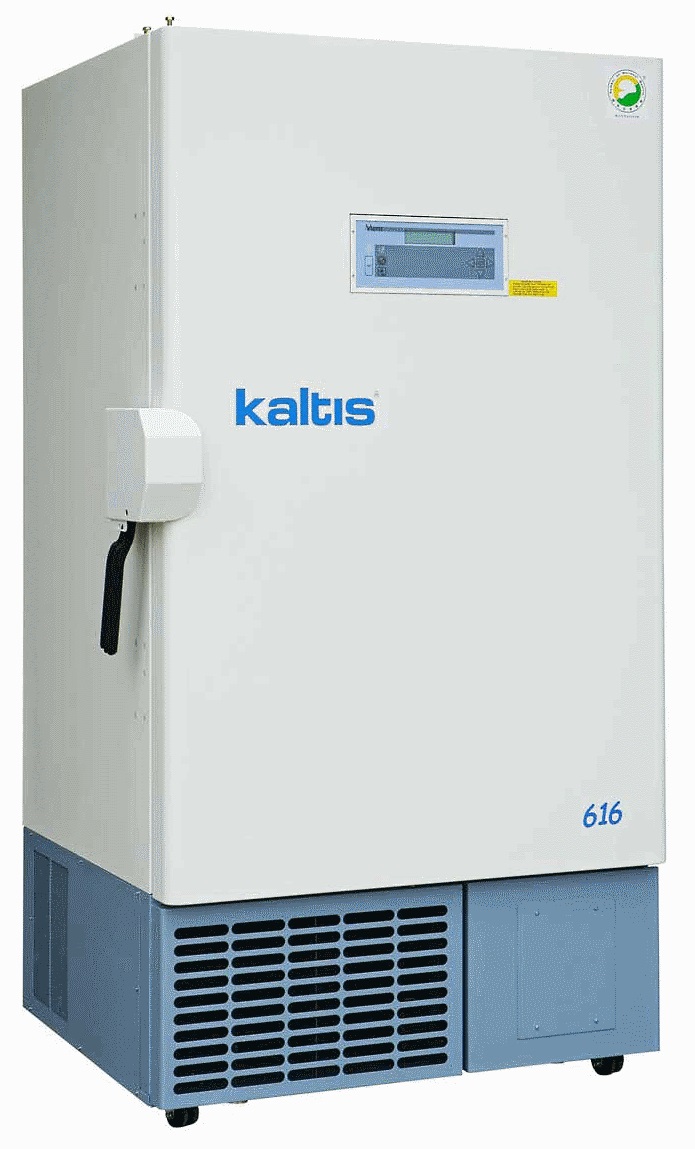

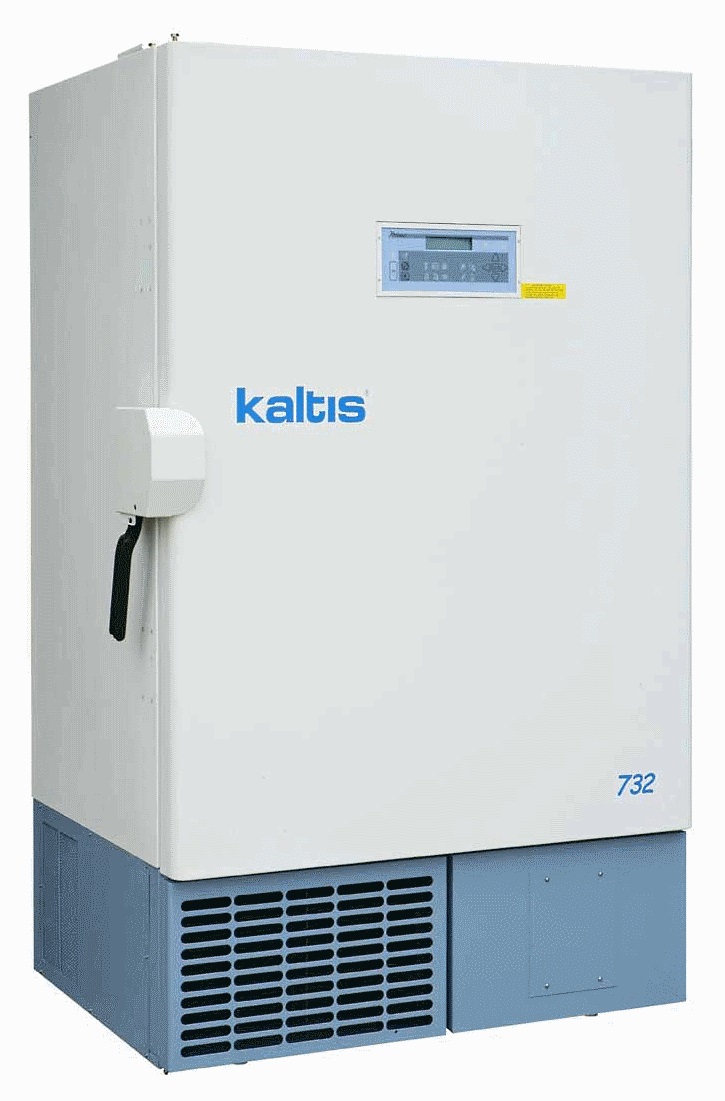

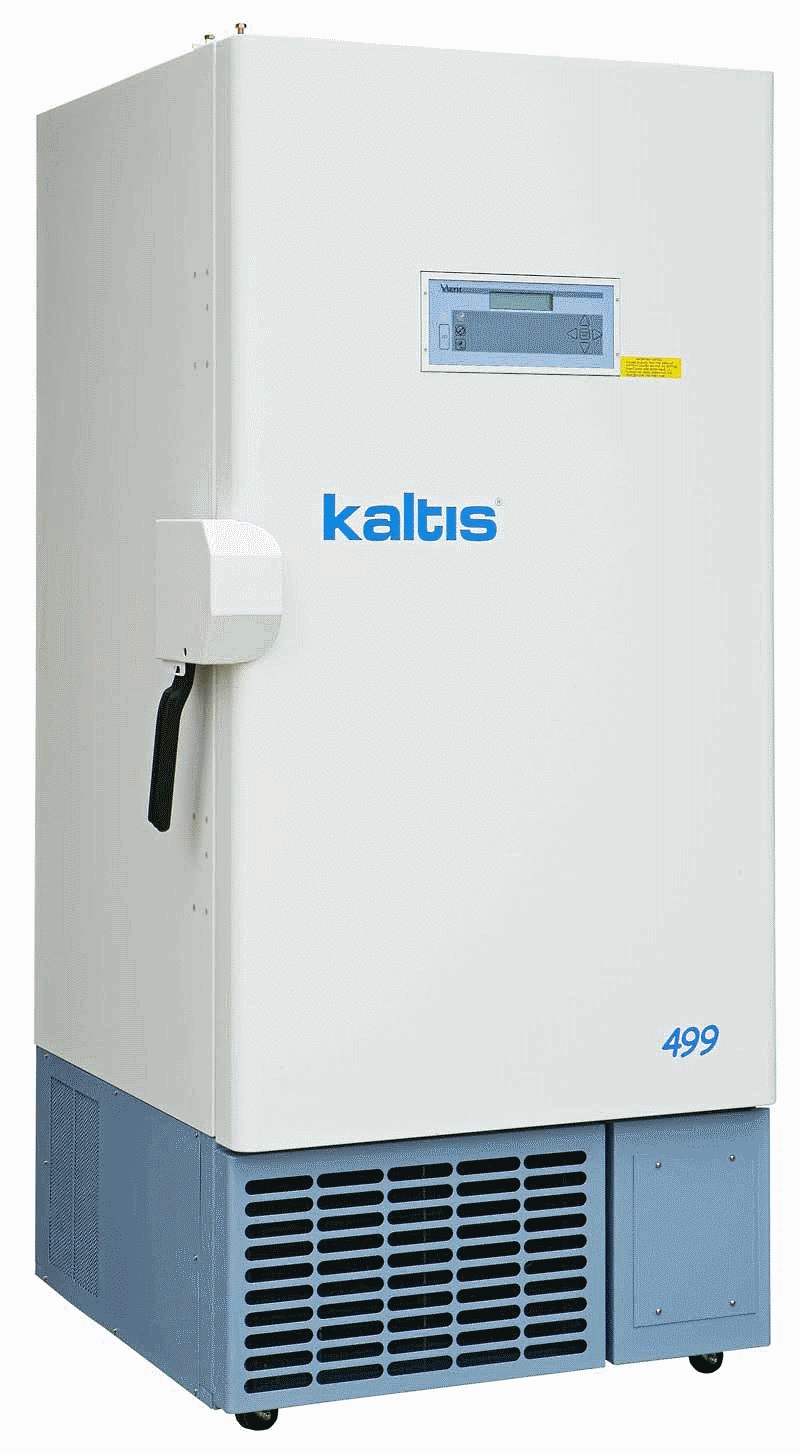

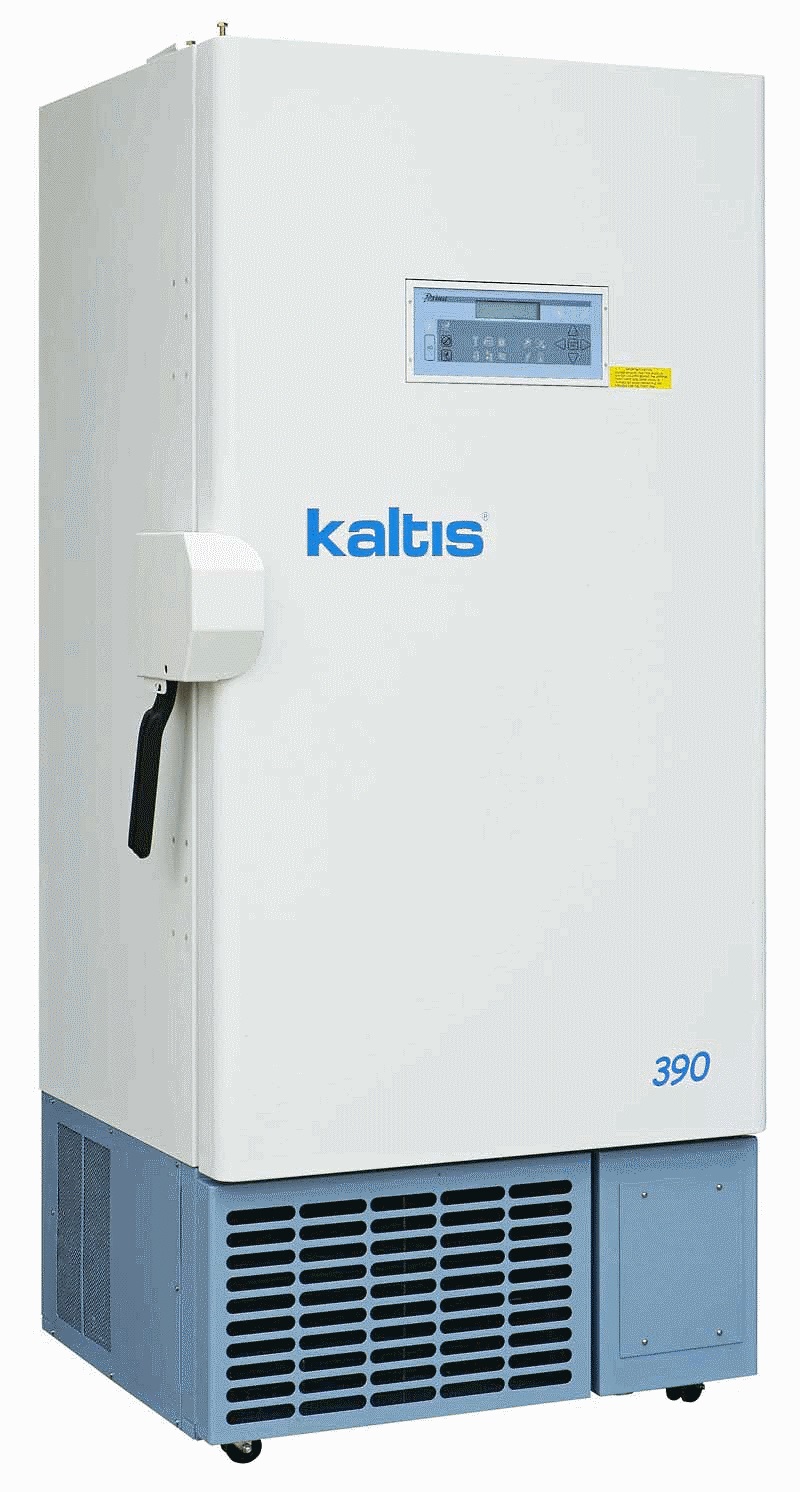

Freezers, Low Temperature Upright - 40°C Merit and Prime Series

Overview

All the Kaltis Low Temperature - 40°C Upright Freezers are manufactured and certified to all electrical standards of Canada, USA, Mexico and Europe, such as CE, CSA, UL, cUL and cETL. The Low Temperature freezers are characterized by design innovations, quality construction and long-term reliability. The freezers provide reliable, dependable performance under all laboratory conditions and have a 25-year track record of proven performance.

The cabinets are designed to meet the challenges of low temperature applications, while ensuring long-term durability and low maintenance. The cabinet is easy to maintain, has proprietary low “K” factor CFC/HCF free insulation and heated door seal and lid gaskets forming multi-point seals while minimizing frost build-up; especially around access area.

A down-feed evaporator coil that completely surrounds the inner chamber is designed to insure uninterrupted refrigerant flow to enhance optimal cooling efficiency.

The Merit Series features standard necessary controls and monitors for Battery, Door Open, Power Failure, Freezer Status and Temperature Deviation.

The Prime Series features microprocessor control that offers more control and safety features, including more information displayed on the LCD screen as well as more compressor protection.

Inquire about the complete range of accessories including Data Chart Recorders, Digital Temperature Recorders, Electrical Temperature Data Logger, Back-up Systems, Remote Phone Alarm, GSM Mobile Telephone Remote Alarm, RS232 or RS485 Communications Port, Remote Computer Monitoring, Control and Data Logging, additional Temperature Probe for alarm system and additional temperature sensors for Prime Series. A variety of racks and storage solutions are also available.

Features of the Merit and Prime Low Temperature Upright Freezers:

Available in volumes from 390L to 732L
Four independent insulated inner doors (five optional)
Three adjustable shelves (four optional)
Easy to clean interior and condenser filter
Heavy duty castors and leveling feet

Specifications (Click here):

Freezers, Low Temperature Upright - 40°C Merit and Prime Series

Specifications

Model:	A039 AA039 DA039	GA050 AA050 DA050	GA061 AA061 DA061	GA073 AA073 DA073
Temperature range: (°C)	-10 to -40	-10 to -40	-10 to -40	-10 to -40
Capacity: (L, ft³)	390, 13.7	499, 17.6	616, 21.7	732, 25.8
Pull and Push Latch and Handle, Independent Insulated Inner Doors:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Inner doors:	4	4	4	4
Shelves:	3	3	3	3
Optional inner doors:	5	5	5	5
Optional shelves:	4	4	4	4
Noise level: (dBA)	< 57	< 57	< 57	< 57
Electrical: (V, Hz, A)	GA (100-115, 50-60, 15) AA (220-240, 50, 7.5) DA (208-230, 50-60, 7.5)	GA (100-115, 50-60, 15) AA (220-240, 50, 7.5) DA (208-230, 50-60, 7.5)	GA (100-115, 50-60, 15) AA (220-240, 50, 7.5) DA (208-230, 50-60, 7.5)	GA (100-115, 50-60, 15) AA (220-240, 50, 7.5) DA (208-230, 50-60, 7.5)
Internal dimensions: W×D×H (cm, inches)	60×50×129, 23.6×19.6×50.7	60×64.5×129, 23.6×25.3×50.7	74×64.5×129, 29.1×25.3×50.7	88×64.5×129, 34.6×25.3×50.7
Net weight: (kg,lb)	290, 639	320, 705	350, 771	380, 838
Exterior dimensions (allow 80mm Upright handle): W×D×H (mm)	85×76×196, 33.4×29.9×77.1	85×88.5×196, 33.4×35.8×77.1	99×88.5×196, 38.9×35.8×77.1	113×88.5×196, 44.4×35.8×77.1
CFC/HCFC-Free Refrigerant:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
High Cascade Refrigerant:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Down Feed Evaporator:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Washable Condenser Filter:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Microprocessor Controller:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Microprocessor Controller:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Password Protection:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Independent High/Low Alarm:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Automatic Voltage Regulator:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Surge Protection:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Digital Voltage Monitoring:	Prime	Prime	Prime	Prime
Digital Current Monitoring:	Prime	Prime	Prime	Prime
Automatic Restart Delay:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Intelligent Self-Diagnostics:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Icon Display:	Prime	Prime	Prime	Prime
Alarm Codes, Audio Alarm, Backup Battery, Test, Remote Contact:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
RS232 or RS485 Communications Port	Merit and Prime, specify with order	Merit and Prime, specify with order	Merit and Prime, specify with order	Merit and Prime, specify with order
Monitor Chamber Termperature, Door Open:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Monitor Power Failure, Voltage Fluctuations, Circuit Breaker:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Monitor Low Condensation:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Compressor Protection:	Prime	Prime	Prime	Prime
Filter Condition:	Prime	Prime	Prime	Prime
Optional Lockable Door Handle:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Heavy Duty Castors and Leveling Feet:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime

Downloads:

Freezers, Low Temperature Upright - 40°C Merit and Prime Series

Number	Description	Price $
GA039P	GA039P Low Temperature 390 Prime Series -40°C Upright 13.7 ft³ Freezer, 100-115V, 50-60Hz	14,240.60
AA039P	AA039P Low Temperature 390 Prime Series -40°C Upright 13.7 ft³ Freezer, 220-240V, 50Hz	14,240.60
DA039P	DA039P Low Temperature 390 Prime Series -40°C Upright 13.7 ft³ Freezer, 208-230V, 50-60Hz	14,240.60
GA050P	GA050P Low Temperature 499 Prime Series -40°C Upright 17.6 ft³ Freezer, 100-115V, 50-60Hz	15,260.00
AA050P	AA050P Low Temperature 499 Prime Series -40°C Upright 17.6 ft³ Freezer, 220-240V, 50Hz	15,260.00
DA050P	DA050P Low Temperature 499 Prime Series -40°C Upright 17.6 ft³ Freezer, 208-230V, 50-60Hz	15,260.00
GA061P	GA061P Low Temperature 616 Prime Series -40°C Upright 21.7 ft³ Freezer, 100-115V, 50-60Hz	14,920.00
AA061P	AA061P Low Temperature 616 Prime Series -40°C Upright 21.7 ft³ Freezer, 220-240V, 50Hz	14,920.00
DA061P	DA061P Low Temperature 616 Prime Series -40°C Upright 21.7 ft³ Freezer, 208-230V, 50-60Hz	14,920.00
GA073P	GA073P Low Temperature 732 Prime Series -40°C Upright 25.8 ft³ Freezer, 100-115V, 50-60Hz	18,999.00
AA073P	AA073P Low Temperature 732 Prime Series -40°C Upright 25.8 ft³ Freezer, 220-240V, 50Hz	18,999.00
DA073P	DA073P Low Temperature 732 Prime Series -40°C Upright 25.8 ft³ Freezer, 208-230V, 50-60Hz	18,999.00
GA039M	GA039M Low Temperature 390 Merit Series -40°C Upright 13.7 ft³ Freezer, 100-115V, 50-60Hz	12,090.00
AA039M	AA039M Low Temperature 390 Merit Series -40°C Upright 13.7 ft³ Freezer, 220-240V, 50Hz	12,090.00
DA039M	DA039M Low Temperature 390 Merit Series -40°C Upright 13.7 ft³ Freezer, 208-230V, 50-60Hz	12,090.00
GA050M	GA050M Low Temperature 499 Merit Series -40°C Upright 17.6 ft³ Freezer, 100-115V, 50-60Hz	13,044.00
AA050M	AA050M Low Temperature 499 Merit Series -40°C Upright 17.6 ft³ Freezer, 220-240V, 50Hz	13,044.00
DA050M	DA050M Low Temperature 499 Merit Series -40°C Upright 17.6 ft³ Freezer, 208-230V, 50-60Hz	13,044.00
GA061M	GA061M Low Temperature 616 Merit Series -40°C Upright 21.7 ft³ Freezer, 100-115V, 50-60Hz	13,997.00
AA061M	AA061M Low Temperature 616 Merit Series -40°C Upright 21.7 ft³ Freezer, 220-240V, 50Hz	13,997.00
DA061M	DA061M Low Temperature 616 Merit Series -40°C Upright 21.7 ft³ Freezer, 208-230V, 50-60Hz	13,997.00
GA073M	GA073M Low Temperature 732 Merit Series -40°C Upright 25.8 ft³ Freezer, 100-115V, 50-60Hz	16,555.00
AA073M	AA073M Low Temperature 732 Merit Series -40°C Upright 25.8 ft³ Freezer, 220-240V, 50Hz	16,555.00
DA073M	DA073M Low Temperature 732 Merit Series -40°C Upright 25.8 ft³ Freezer, 208-230V, 50-60Hz	16,555.00
321C-01	Circular chart temperature recorder, 7-day on pressure sensitive chart paper, ideally installed at time of order but can be retro-fitted, includes box of 50 blank charts	2,235.00
XXX-Custom	Digital temperature recorder, ideally installed at time of order but can be retro-fitted	Inquire
3121C-09	Electrical temperature data logger	444.85
19-021	Back-up system injects LCO2 when internal temperature warms to a preset level, for both Merit and Prime series, operates from rechargeable battery, includes all hardware except for gas supply cylinders, can be factory fitted at time of order or retro-fitted	1,783.50
19-020	Back-up system injects LN2 when internal temperature warms to a preset level, for both Merit and Prime series, operates from rechargeable battery, includes all hardware except for gas supply cylinders, can be factory fitted at time of order or retro-fitted	2,230.40
19-001	Remote Phone Alarm RPA, built-in backup battery	358.75
312199-19	GSM mobile telephone remote alarm, control and monitor, no distance limitation, monitors up to 8 freezers and dials up to 2 phones	2,230.00
33214P-07	RS232 communications port, allows remote monitoring and control of a single Merit or Prime Series freezer, maximum distance 10m, at time of ordering exactly one optional port can be specified	262.50
33214P-08	RS485 communications port, allows remote monitoring, up to 99 freezers can be connected, maximum distance 1000m, at time of ordering exactly one optional port can be specified	402.50
XXX-1	Remote monitoring, control and data logging, maximum of 99 freezers can be connected to one computer using a RS485 port (limit for RS232 port is 1 freezer)	Inquire
XXX-2	Additional temperature probe fitted to alarm system, must be specified with order	Inquire
XXX-3	Additional temperature sensors installed in Prime Series can be incorporated into the control panel, a maximum of three to detect sample temperature or cabinet temperature uniformity	Inquire
