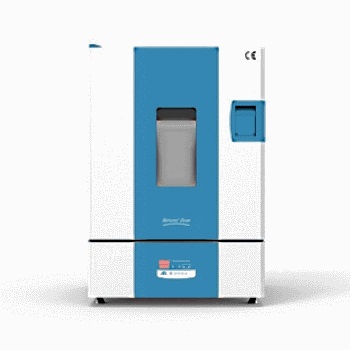

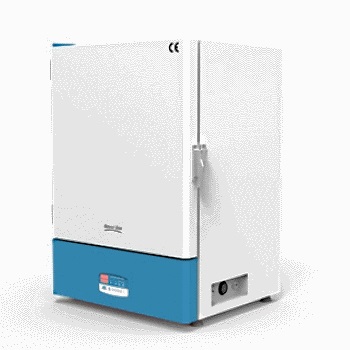

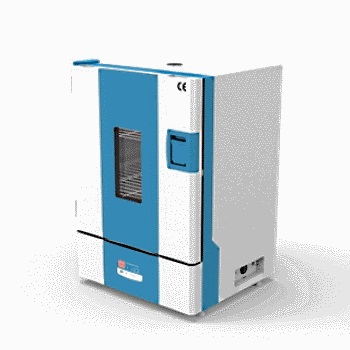

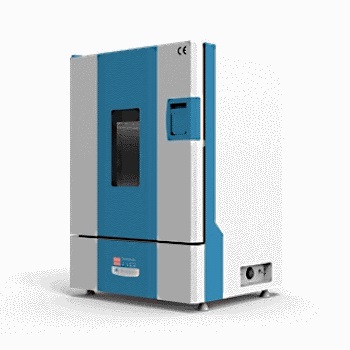

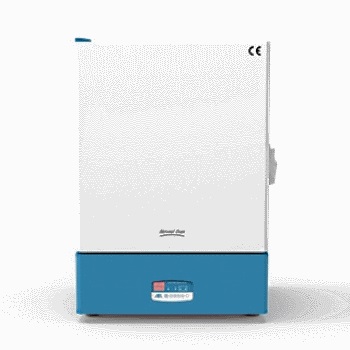

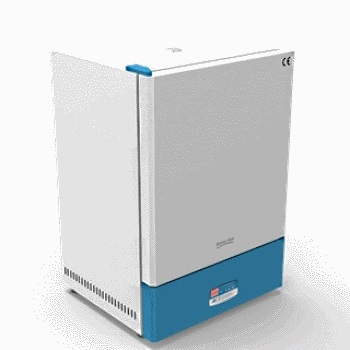

Natural Convection Drying Ovens for Decarboxylation, DO-NG and DO-NGE Series
Overview
The DO-NG and DO-NGE Series of Natural Convection Drying Ovens are designed for decarboxylation of plant materials. Specifically, in the cannabis industry, decarboxylation is the chemical reaction that removes a carboxyl group from the THC-A molecule, releases carbon dioxide and activates the psychoactive THC. These natural convection drying ovens are ideal for this function because they offer careful control of the decarb process to produce reliable and more predictable outcomes.
A variety of models are available in capacities of 54, 100, and 149 liters, with the DO-NG models having a 250 °C limit and the more economical DO-NGE dryers having a limit of 220 °C. The DO-NG dryers have a tempered glass observation window. Each oven is CSA Certified and is supplied with 2 stainless steel wire shelves, with more shelves available.
The DO-NG and DO-NGE drying ovens feature excellent temperature uniformity and accuracy, stainless steel internal chambers and are designed for continuous operation. Safety is assured with CE Conformity and CSA Certification.
Features of the DO-NG and DO-NGE Series of Natural Convection Drying Ovens:
Over temperature controller
Automatic re-set function incoming power cut
Delayed On/Off Timer
Buzzer on when set-time is reached
Door open alarm
Supplied with 2 stainless steel shelves
Specifications (Click here):
Natural Convection Drying Ovens for Decarboxylation, DO-NG and DO-NGE Series
Specifications
Model:
DO-54NG
DO-54NGE
DO-100NG
DO-100NGE
DO-149NG
DO-149NGE
Capacity: (L, ft3)
54, 1.9
54, 1.9
100, 3.53
100, 3.53
150, 5.3
150, 5.3
Temperature range: (°C, °F)
Ambient +10 to 250, +18 to 482
Ambient +10 to 250, +18 to 482
Ambient +10 to 250, +18 to 482
Ambient +10 to 250, +18 to 482
Ambient +10 to 250, +18 to 482
Ambient +10 to 250, +18 to 482
Time, Temperature PID control:
Membrane touch digital controller
Membrane touch digital controller
Membrane touch digital controller
Membrane touch digital controller
Membrane touch digital controller
Membrane touch digital controller
Time range, digital counter timer: (hr:min)
0:00 to 99:59
0:00 to 99:59
0:00 to 99:59
0:00 to 99:59
0:00 to 99:59
0:00 to 99:59
Air circulation:
Forced air
Forced air
Forced air
Forced air
Forced air
Forced air
Heater: (W)
800
800
1200
1200
1800
1800
Dimensions, internal: W×D×H (mm)
380x340x420
380x340x420
480x400x530
480x400x530
555x460x600
555x460x600
Dimensions, external: W×D×H (mm)
500x495x820
530x480x820
600x555x930
630x540x930
675x605x1000
705x590x1000
Material, internal:
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Material, external:
Powder coated steel
Powder coated steel
Powder coated steel
Powder coated steel
Powder coated steel
Powder coated steel
Door gasket:
Silicone rubber
Silicone rubber
Silicone rubber
Silicone rubber
Silicone rubber
Silicone rubber
View window:
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Shelves (2 supplied):
12 maximum
12 maximum
15 maximum
15 maximum
17 maximum
17 maximum
Electrical: (V/A)
(120/7.3), (230/3.5) available
(120/7.3), (230/3.5) available
(120/10.9), (230/5,2) available
(120/10.9), (230/5,2) available
(120/16.4), (230/7.8) available
120/16.4), (230/7.8) available
Weight: (kg)
44
40
57.8
50
74.4
58
Number
Description
Price $
DO-54NG
Gravity Convection Air Drying Oven, Decarboxylation, supplied with 2 shelves, 54 Liters
2,160.90
DO-100NG
Gravity Convection Air Drying Oven, Decarboxylation, supplied with 2 shelves, 100 Liters
2,538.20
DO-149NG
Gravity Convection Air Drying Oven, Decarboxylation, supplied with 2 shelves, 150 Liters
2,881.12
DO-54NGE
Economical Gravity Convection Air Drying Oven, Decarboxylation, supplied with 2 shelves, 54 Liters
1,835.05
DO-100NGE
Economical Gravity Convection Air Drying Oven, Decarboxylation, supplied with 2 shelves, 100 Liters
1,989.40
DO-149NGE
Economical Gravity Convection Air Drying Oven, Decarboxylation, supplied with 2 shelves, 150 Liters
2,315.25
DOWS54
Stainless steel wire shelf for DO-54FG, DO-54NG or DO-54NGE drying ovens
88.20
DOWS100
Stainless steel wire shelf for DO-100FG, DO-100NG or DO-100NGE drying ovens
98.00
DOWS150
Stainless steel wire shelf for DO-149FG, DO-149NG, or DO-149NGE drying ovens
98.00
DOPS54
Perforated shelf for DO-54FG, DO-54NG or DO-54NGE drying oven
147.00
DOPS100
Perforated shelf for DO-100FG, DO-100NG or DO-100NGE drying oven
198.45
DOPS150
Perforated shelf for DO-149FG, DO-149NG or DO-149NGE drying oven
