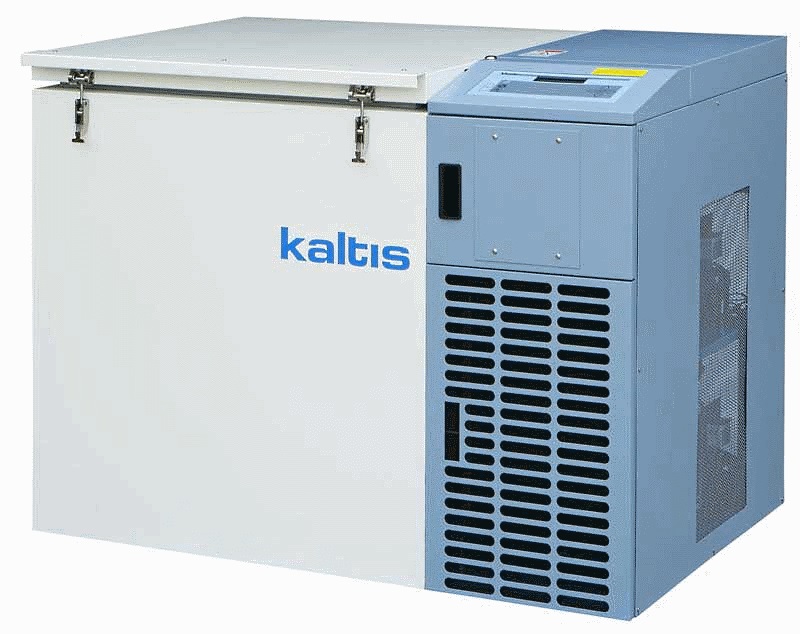

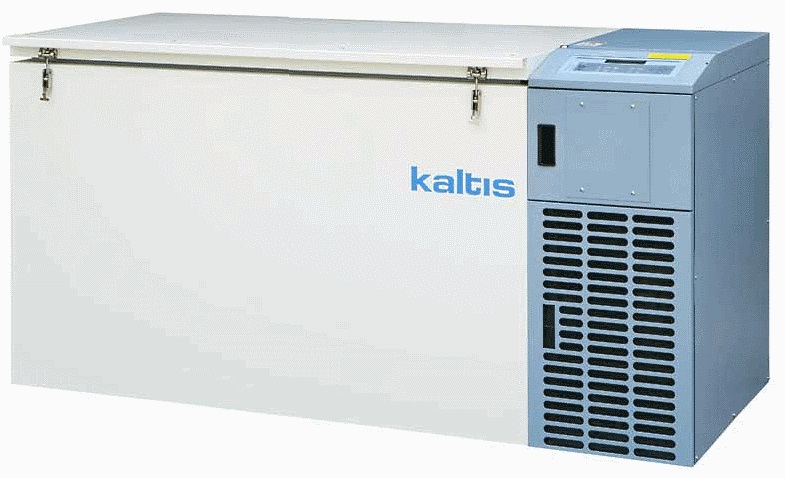

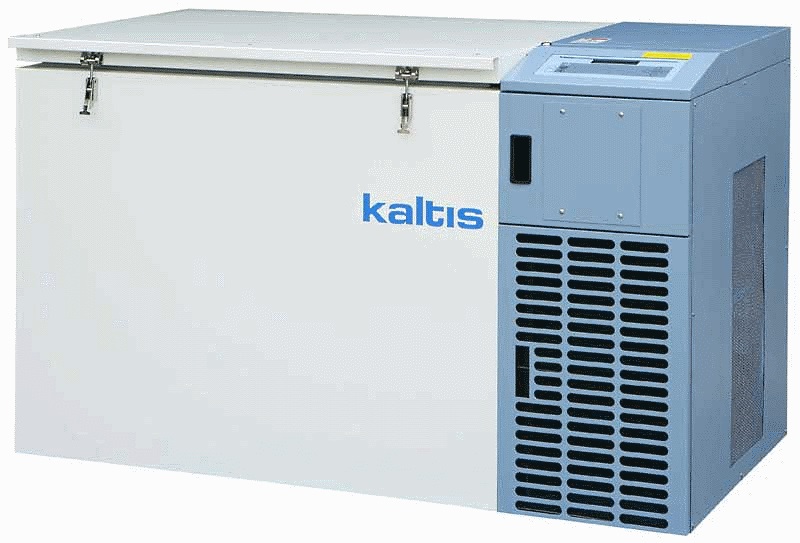

Freezers, Ultra Low Temperature Chest - 86°C Merit and Prime Series

Overview

All the Kaltis Ultra Low Temperature (ULT) - 86°C Chest Freezers are manufactured and certified to all electrical standards of Canada, USA, Mexico and Europe, such as CE, CSA, UL, cUL and cETL. The Ultra Low Temperature freezers are characterized by design innovations, quality construction and long-term reliability. The freezers provide reliable, dependable performance under all laboratory conditions and have a 25-year track record of proven performance.

Their use includes long term storage of biological materials, blood components, pharmaceuticals and forensic samples. The cabinets are designed to meet the challenges of ultra low temperature applications, while ensuring long-term durability and low maintenance. The cabinet is easy to maintain, has proprietary low “K” factor CFC/HCF free insulation and heated door seal and lid gaskets forming multi-point seals while minimizing frost build-up; especially around access area.

A down-feed evaporator coil that completely surrounds the inner chamber is designed to insure uninterrupted refrigerant flow to enhance optimal cooling efficiency.

The Merit Series features standard necessary controls and monitors such as monitors for Battery, Door Open, Power Failure, Freezer Status and Temperature Deviation.

The Prime Series features Minerva™ microprocessor control that offers more control and safety features, including more information displayed on the LCD screen as well as more compressor protection.

Inquire about the complete range of accessories including Data Chart Recorders, Digital Temperature Recorders, Electrical Temperature Data Logger, Back-up Systems, Remote Phone Alarm, GSM Mobile Telephone Remote Alarm, RS232 or RS485 Communications Port, Remote Computer Monitoring, Control and Data Logging, additional Temperature Probe for alarm system and additional temperature sensors for Prime Series. A variety of racks and storage solutions are also available.

Features of the Merit and Prime Ultra Low Temperature Chest Freezers:

Available in volumes from 220L to 530L
Dual cascade refrigeration system, two compressors
Combined high first stage and low second stage compressors
Unique dual evaporator design with maximum contact on walls for fast cooling down
Easy to clean interior and condenser filter
Balanced lid
Insulated interior doors (up to three depending on size)
Heavy duty castors and leveling feet

Specifications (Click here):

Freezers, Ultra Low Temperature Chest - 86°C Merit and Prime Series

Specifications

Model:	GH022 AH022 DH022	GH032 AH032 DH032	GH043 AH043 DH043	GH053 AH053 DH053
Temperature range: (°C)	-20 to -86	-20 to -86	-20 to -86	-20 to -86
Capacity: (L, ft³)	220, 7.8	320, 11.3	430, 15.2	530, 18.7
Pull and Push Latch and Handle:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Independent insulated inner doors:	Yes	Yes	Yes	Yes
Noise level: (dBA)	<57	<57	<57	<57
CFC/HCFC-Free Refrigerant:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
High Cascade Refrigerant:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Down Feed Evaporator:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Washable Condenser Filter:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Microprocessor Controller:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Password Protection:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Independent High/Low Alarm:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Automatic Voltage Regulator:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Surge Protection:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Digital Voltage Monitoring:	Prime	Prime	Prime	Prime
Digital Current Monitoring:	Prime	Prime	Prime	Prime
Automatic Restart Delay:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Intelligent Self-Diagnostics:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Icon Display:	Prime	Prime	Prime	Prime
Alarm Codes, Audio Alarm, Backup Battery, Test, Remote Contact:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
RS232 or RS485 Communications Port	Merit and Prime, specify with order	Merit and Prime, specify with order	Merit and Prime, specify with order	Merit and Prime, specify with order
Monitor Chamber Termperature, Door Open:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Monitor Power Failure, Voltage Fluctuations, Circuit Breaker:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Monitor Low Condensation:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Compressor Protection:	Prime	Prime	Prime	Prime
Filter Condition:	Prime	Prime	Prime	Prime
Optional Lockable Door Handle:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
Heavy Duty Castors and Leveling Feet:	Merit and Prime	Merit and Prime	Merit and Prime	Merit and Prime
ElectricHl: (V, Hz, H)	GH (100-115, 50-60, 15) AH (220-240, 50, 7.5) DH (208-230, 50-60, 7.5)	GH (100-115, 50-60, 15) AH (220-240, 50, 7.5) DH (208-230, 50-60, 7.5)	GH (100-115, 50-60, 15) AH (220-240, 50, 7.5) DH (208-230, 50-60, 7.5)	GH (100-115, 50-60, 15) AH (220-240, 50, 7.5) DH (208-230, 50-60, 7.5)
Internal dimensions: W×D×H (cm, inches)	61×50×72, 24×19.7×28.3	90×50×72, 35.4×19.7×28.3	118.5×50×72, 46.7×19.7×28.3	148×50×72, 58.3×19.7×28.3
Net weight: (kg,lb)	210, 462	245, 539	280, 616	315, 693
Exterior dimensions (allow 110mm for chest handle): W×D×H (mm)	126×75×102.5, 49.6×29.5×40.1	155×75×102.5, 61×29.5×40.1	183.5×75×102.5, 72.2×29.5×40.1	213×75×102.5, 83.9×29.5×40.1

Downloads:

Freezers, Ultra Low Temperature Chest - 86°C Merit and Prime Series

Number	Description	Price $
GH022P	GH022P Ultra Low Temperature 220 Prime Series -86°C Chest 7.8 ft³ Freezer, 100-115V, 50-60Hz	16,060.10
AH022P	AH022P Ultra Low Temperature 220 Prime Series -86°C Chest 7.8 ft³ Freezer, 220-240V, 50Hz	16,060.10
DH022P	DH022P Ultra Low Temperature 220 Prime Series -86°C Chest 7.8 ft³ Freezer, 208-230V, 50-60Hz	16,060.10
GH032P	GH032P Ultra Low Temperature 320 Prime Series -86°C Chest 11.3 ft³ Freezer, 100-115V, 50-60Hz	17,231.90
AH032P	AH032P Ultra Low Temperature 320 Prime Series -86°C Chest 11.3 ft³ Freezer, 220-240V, 50Hz	17,231.90
DH032P	DH032P Ultra Low Temperature 320 Prime Series -86°C Chest 11.3 ft³ Freezer, 208-230V, 50-60Hz	17,231.90
GH043P	GH043P Ultra Low Temperature 430 Prime Series -86°C Chest 15.2 ft³ Freezer, 100-115V, 50-60Hz	18,403.60
AH043P	AH043P Ultra Low Temperature 430 Prime Series -86°C Chest 15.2 ft³ Freezer, 220-240V, 50Hz	18,403.60
DH043P	DH043P Ultra Low Temperature 430 Prime Series -86°C Chest 15.2 ft³ Freezer, 208-230V, 50-60Hz	18,403.60
GH053P	GH053P Ultra Low Temperature 530 Prime Series -86°C Chest 18.7 ft³ Freezer, 100-115V, 50-60Hz	20,373.05
AH053P	AH053P Ultra Low Temperature 530 Prime Series -86°C Chest 18.7 ft³ Freezer, 220-240V, 50Hz	20,373.05
DH053P	DH053P Ultra Low Temperature 530 Prime Series -86°C Chest 18.7 ft³ Freezer, 208-230V, 50-60Hz	20,373.05
GH022M	GH022M Ultra Low Temperature 220 Merit Series -86°C Chest 7.8 ft³ Freezer, 100-115V, 50-60Hz	14,260.00
AH022M	AH022M Ultra Low Temperature 220 Merit Series -86°C Chest 7.8 ft³ Freezer, 220-240V, 50Hz	14,260.00
DH022M	DH022M Ultra Low Temperature 220 Merit Series -86°C Chest 7.8 ft³ Freezer, 208-230V, 50-60Hz	14,260.00
GH032M	GH032M Ultra Low Temperature 320 Merit Series -86°C Chest 11.3 ft³ Freezer, 100-115V, 50-60Hz	15,254.80
AH032M	AH032M Ultra Low Temperature 320 Merit Series -86°C Chest 11.3 ft³ Freezer, 220-240V, 50Hz	15,254.80
DH032M	DH032M Ultra Low Temperature 320 Merit Series -86°C Chest 11.3 ft³ Freezer, 208-230V, 50-60Hz	15,254.80
GH043M	GH043M Ultra Low Temperature 430 Merit Series -86°C Chest 15.2 ft³ Freezer, 100-115V, 50-60Hz	16,250.00
AH043M	AH043M Ultra Low Temperature 430 Merit Series -86°C Chest 15.2 ft³ Freezer, 220-240V, 50Hz	16,250.00
DH043M	DH043M Ultra Low Temperature 430 Merit Series -86°C Chest 15.2 ft³ Freezer, 208-230V, 50-60Hz	16.250.00
GH053M	GH053M Ultra Low Temperature 530 Merit Series -86°C Chest 18.7 ft³ Freezer, 100-115V, 50-60Hz	17,244.00
AH053M	AH053M Ultra Low Temperature 530 Merit Series -86°C Chest 18.7 ft³ Freezer, 220-240V, 50Hz	17,244.00
DH053M	DH053M Ultra Low Temperature 530 Merit Series -86°C Chest 18.7 ft³ Freezer, 208-230V, 50-60Hz	17,244.00
321C-01	Circular chart temperature recorder, 7-day on pressure sensitive chart paper, ideally installed at time of order but can be retro-fitted, includes box of 50 blank charts	2,235.00
XXX-Custom	Digital temperature recorder, ideally installed at time of order but can be retro-fitted	Inquire

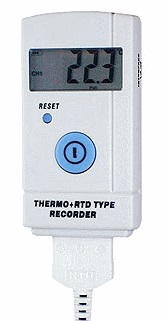

3121C-09	Electrical temperature data logger	444.85
19-021	Back-up system injects LCO2 when internal temperature warms to a preset level, for both Merit and Prime series, operates from rechargeable battery, includes all hardware except for gas supply cylinders, can be factory fitted at time of order or retro-fitted	1,783.50
19-020	Back-up system injects LN2 when internal temperature warms to a preset level, for both Merit and Prime series, operates from rechargeable battery, includes all hardware except for gas supply cylinders, can be factory fitted at time of order or retro-fitted	2,230.40
19-001	Remote Phone Alarm RPA, built-in backup battery	358.75
312199-19	GSM mobile telephone remote alarm, control and monitor, no distance limitation, monitors up to 8 freezers and dials up to 2 phones	2,230.00
33214P-07	RS232 communications port, allows remote monitoring and control of a single Merit or Prime Series freezer, maximum distance 10m, at time of ordering exactly one optional port can be specified	262.50
33214P-08	RS485 communications port, allows remote monitoring, up to 99 freezers can be connected, maximum distance 1000m, at time of ordering exactly one optional port can be specified	402.50
XXX-1	Remote monitoring, control and data logging, maximum of 99 freezers can be connected to one computer using a RS485 port (limit for RS232 port is 1 freezer)	Inquire
XXX-2	Additional temperature probe fitted to alarm system, must be specified with order	Inquire
XXX-3	Additional temperature sensors installed in Prime Series can be incorporated into the control panel, a maximum of three to detect sample temperature or cabinet temperature uniformity	Inquire
