Minifors are frequently used as a starting point for research and education using fermenters, and also serve as a cost-effective way to get large numbers of bioreactors for industrial use.
The use of heating blocks (no jackets), removable, autoclavable pump heads and integral frames for carrying the vessel and accessories to and from an autoclave make a Minifors easier to use than typical bench top bioreactors.
Available in both bacterial and cell culture versions, Minifors is supplied as a package with everything necessary to take the next step in capacity and control from shake flasks or spinners. For example, the basic bacterial Minifors gives you pH control, feeding, sampling and software for data-logging straight out of the box.
The direct digital control (DDC) system used in the Minifors is a reliable micro-processor based control system used in INFORS HT shakers and bioreactors. The splash proof operating panel is integrated into the base unit and allows easy setting of key parameter values such as set points, along with calibration and various control options. Multiple LED’s and icons display information.
The vessels consist of borosilicate glass covered by a stainless steel top plate with an optimal arrangement of port fittings and inlets. An intermediate aspect ratio of 2.5:1 is used to allow use for both bacterial and cell culture applications. Vessels, bottles and pump heads are all supported in a special holder for easy handling when autoclaving. All vessels are round bottomed.
Features of the Minifors:
Compact, all components integrated into a single housing
Heating block (with cooling) for temperature control
Top drive motor with mechanical slip rings seal, located behind the vessel for easier access to the top plate
Easy handling of single jacket glass vessel - light, inexpensive to replace, no connections
Performance similar to heater pads but no fitting after autoclaving
Removable, autoclavable pump heads (minimum of 2, maximum of 4)
One or two (cell culture version) rotameters for gas supply
Easy to use Direct Digital Control microprocessor control system
Standard measuring and control options such as stirrer speed and temperature as well as optional ones
Specifications (Click here):
Bioreactors, the Benchtop Infors Minifors
Specifications
Model:
Minifors Bioreactor
Temperature: (°C)
Up to 60, electrical heater block
Stirrer speed. Bacterial version: (rpm)
100 - 1250
Stirrer speed. Cell version: (rpm)
30 - 300
Vessel sizes: (L)
2.5, 5.0
Vessel construction:
Stainless steel and glass, single walled
Working volume, 2.5 L/5.0 L: (L)
1.2/3
Port fittings for 2.5 L vessel: (n × mm)
5 × Pg 13.5, 1 × 18, 3 × 10
Port fittings for 5.0 L vessel: (n × mm)
5 × Pg 13.5, 1 × 18, 3 × 10
Vessel seal:
mechanical
Gassing options:
Rotameter(s), gas supplementation, (optional O2, Bacteria), O2 and CO2 Cell
Pumps:
2 standard, up to 4
Base unit dimensions: W×D×H (mm)
395 × 370 × 550
Vessel holder dimensions: W×D×H (mm)
395 × 160 × 420
Parameters:
°C, rpm, pH, pO2 +AF, feed, optional additional parameters such as mass-flow, turbidity with optional analog input and outputs.
Sterilization:
Autoclavable
Dimensions: W x D x H (mm)
395 × 370 × 550
Number
Description
Price $
MINI-2.5-BACT
Minifors Package 2.5L TV Bacterial, complete with 3-way inlet, exit gas cooler, inoculation port, sample device and pH electrode, pre-assembled tubing, filters, some consumables and datalogging software, ready to go out of the box
Inquire
MINI-5.0-BACT
Minifors Package 5.0L TV Bacterial, complete with 3-way inlet, exit gas cooler, inoculation port, sample device and pH electrode, pre-assembled tubing, filters, some consumables and datalogging software, ready to go out of the box
Inquire
MINI-2.5-CELL
Minifors Package 2.5L TV Cells, complete with O2 and CO2 gas inlets, pre-assembled tubing, filters, some consumables and datalogging software, ready to go out of the box
Inquire
MINI-5.0-CELL
Minifors Package 5.0L TV Cells, complete with O2 and CO2 gas inlets, pre-assembled tubing, filters, some consumables and datalogging software, ready to go out of the box
Inquire

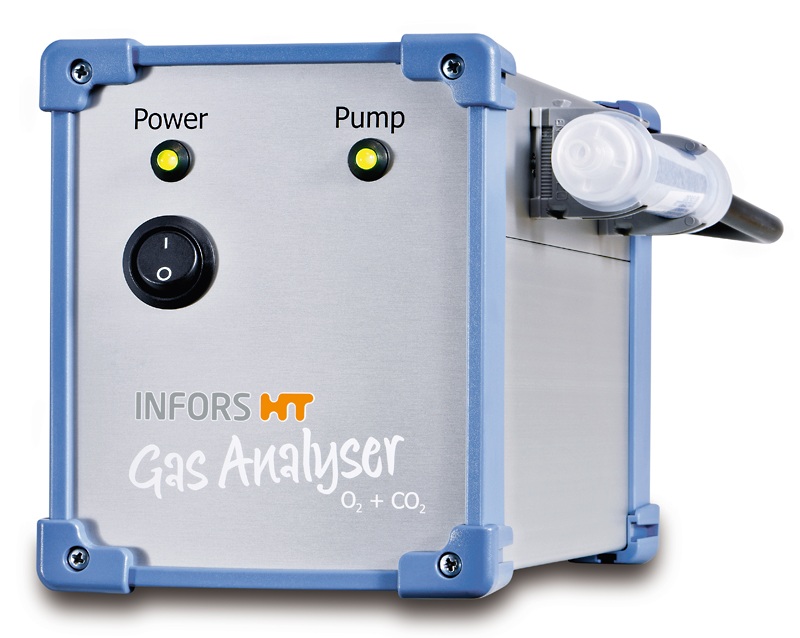

HT-GAS
INFORS HT Gas Analyzer, for exit CO2 and O2 gas analysis, optional multiplexer function for use with up to 6 bioreactors, immediate readings for culture analysis, precision control with Iris software, Iris software allows the calculation of parameters such as CO2 evolution rate, O2 uptake rate and respiratory quotient, as well as logging and storing data, analog connection allows use with non Infors bioreactors, compact 115 × 235 mm footprint, 142 × 275 × 135 mm overall size
Inquire
HT-SAFE
INFORS HT Super Safe Sampler, integrated non return valves, take smallest samples with no waste of culture, back flush with sterile air, sterile and safe sampling without laminar flow hood, sampling without risking contamination of the culture vessel, flushing of sample line not required (no dead volume), needle free, autoclavable many times
Inquire
BIO-IRIS
INFORS HT Iris software, flexible options for data logging, graphing and control, a link between all INFORS HT bioreactors, linked to Minifors, but PRO version is available for all types of bioreactors and includes more features such as links to balances or mass spectrometers, or communication features
Inquire
OPTIONS
Special optional solutions available for continuous, chemostat and perfusion processes, configured for batch and fed-batch processes by default
