Forced Air Drying Ovens, High Temperature (500 °C)
Overview

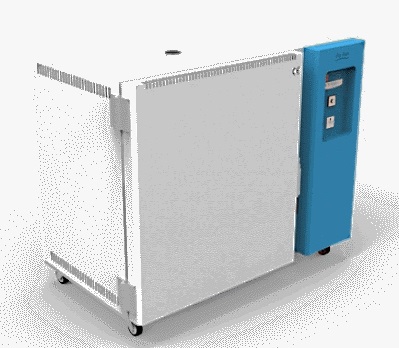

The DO-FS Series High Temperature Forced Air Drying Ovens are designed for routine and continuous use at high temperatures, up to 500 °C. Two models are available in capacities of 91 and 150 liters. (A larger 216 liter model is available on special order.)
The ovens operate from 10 ºC above ambient to 500 ºC. DO-FS series ovens feature an effective air-jacket chamber insulation design. Each oven is CSA Certified and is supplied with 2 stainless steel wire shelves, with more shelves available.
Features of the DO-FS Series of High Temperature Forced Air Drying Ovens:
Over temperature controller
Automatic re-set function incoming power cut
Delayed On/Off Timer
Buzzer on when set-time is reached
Door open alarm
Supplied with 2 stainless steel shelves
Specifications (Click here):
Forced Air Drying Ovens, High Temperature (500 °C)
Specifications
Model:
DO-90FS
DO-150FS
Capacity: (L, ft3)
91, 3.2
150, 5.3
Temperature range: (°C, °F)
Ambient +10 to 500, +18 to 932
Ambient +10 to 500, +18 to 932
Time, Temperature PID control:
Membrane touch digital controller
Membrane touch digital controller
Time range, digital counter timer: (h:m)
0:00 to 99:59
0:00 to 99:59
Air circulation:
Forced air
Forced air
Heater: (W)
4200
5400
Dimensions, internal: W×D×H (mm)
450x450x450
500x500x600
Dimensions, external: W×D×H (mm)
1196x700x925
1296x750x1075
Material, internal:
Stainless steel
Stainless steel
Material, external:
Powder coated steel
Powder coated steel
Shelves (2 supplied):
12 maximum
17 maximum
Electrical: (V/A)
(120/38.2), (230/18.3) available
(120/49.1), (230/23.5) available
Weight: (kg)
202
234
Number
Description
Price $
DO-90FS
Forced Air High Temperature Drying Oven, supplied with 2 shelves, 90 Liters
9,613.80
DO-150FS
Forced Air High Temperature Drying Oven, supplied with 2 shelves, 150 Liters
