Bottle Top Dispensers, LabMax eco, LabMax premium, LabMax airless
Overview
The LabMax eco, LabMax premium, and LabMax airless series of bottle top dispensers are newly designed upgrades to previous LabMax high performance dispensing instruments.

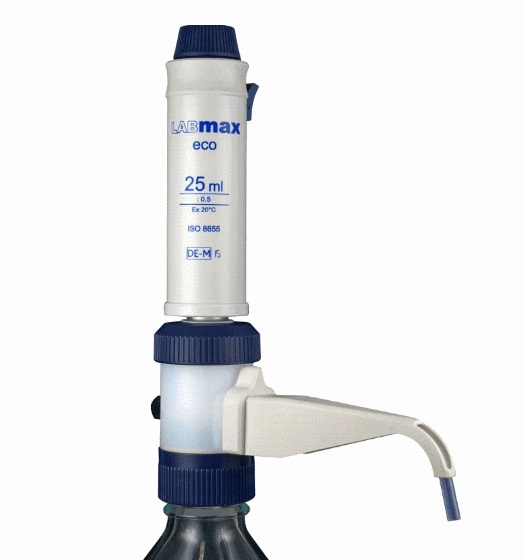

The dispensers in the LabMax eco Series are the new economical and ecological way to dispense liquids commonly used in the laboratory. They could be used for nearly all applications of dispensing liquids and are perhaps the most economical choice.
These LabMax eco dispensers offer quick. easy and precise volume setting, by just pressing and pushing the quick-adjust knob to the desired volume.
Turning the discharge tube to 90º removes trapped air without reagent loss by pumping in a closed circuit; the reagent flows back into the reservoir. After pumping the dispenser 2 or 3 times, the dispenser is free of air and ready to use. By turning the discharge tube to 180º all liquid flows back to the reservoir. The LabMax eco is completely closed and no accidental discharge can occur by inadvertently moving the piston. There is absolutely no dripping possible.
Another key feature is that no matter how tight the dispenser is screwed on to the reservoir, you could always redirect the discharge tube by simply turning the valve block to the desired position. This way, the label of the reservoir is always visible.
The LabMax eco Series is available in a broad volume range.
Each unit is supplied with standard accessories for immediate mounting on bottles with a discharge tube. Additional accessories are available.

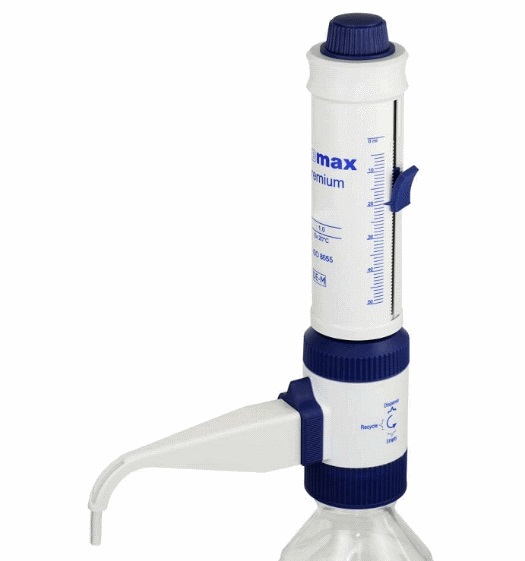

The dispensers in the LabMax premium Series combine all the excellent features of those in the LabMax eco Series, plus an enhanced level of Quick-adjust Knob, and easy in-house recalibration.

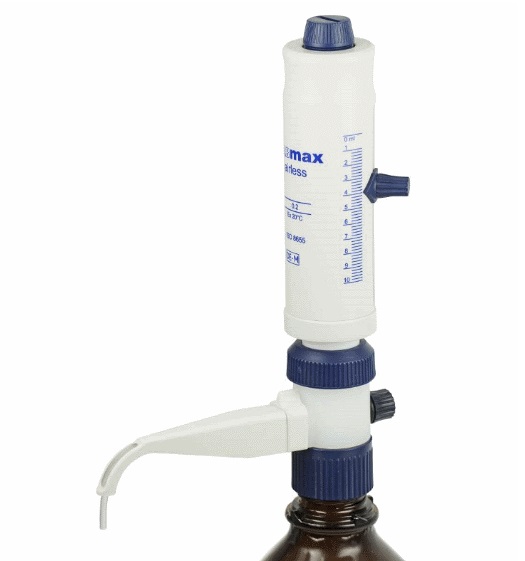

The dispensers in the standard LabMax airless Series have PTFE Cylinders and borosilicate glass pistons. They are designed with automatic air purging to ensure higher accuracy as the device is free from air before dispensing. Air, lighter than liquid, passes off the device automatically through the special ejection channel and discharge tube. Contamination of the reservoir content is not possible. Ideal for PTFE swelling solvents.
Features of the LabMax Bottle Top Dispensers:
High qualifty precision instrument made in Germany with error ranges exceeding DIN IN ISO 8655 requirements
Superb materials, including platinum springs
360° rotatable valve block for safety
One handed operation
Flexibility offered with different bottle adapters
100% drip free due to unique anti-drip system
Loss free transfer of reagents
Easy to clean, autoclavable at 121°C
Individual certificate and serial number
LabMax precision has a built in re-calibration mechanism
LabMax airless has an automatic air purging system, ready to use after no more than two dosings
A bushing allows the simple attachment of different filters as well as calcium chloride tubes or a check valve, to prevent exchanges between reagent and room
Specifications (Click here):
Bottle Top Dispensers, LabMax eco, LabMax premium, LabMax airless
LabMax eco Bottle Top Dispenser, 0.25 – 2.5mL, supplied with suction tube, discharge tube, thread adapter (VWR: 40000.060)
547.40
5 370 002
LabMax eco Bottle Top Dispenser, 0.5 – 5.0mL, supplied with suction tube, discharge tube, thread adapter (VWR: 40000.062)
547.40
5 370 003
LabMax eco Bottle Top Dispenser, 1.0 – 10.0mL, supplied with suction tube, discharge tube, thread adapter (VWR: 40000.064)
547.40
5 370 004
LabMax eco Bottle Top Dispenser, 2.5 – 25.0mL, supplied with suction tube, discharge tube, thread adapter (VWR: 40000.066)
802.00
5 370 005
LabMax eco Bottle Top Dispenser, 5.0 – 50.0mL, supplied with suction tube, discharge tube, thread adapter (VWR: 40000.068)
871.05
5 370 006
LabMax eco Bottle Top Dispenser, 10.0 – 100.0mL, supplied with suction tube, discharge tube, thread adapter (VWR: 40000.070)
1,093.05
5 370 007
LabMax eco Bottle Top Dispenser, 25.0 – 250.0 mL, supplied with suction tube, discharge tube, thread adapter
2,683.40
5 370 901
LabMax premium Bottle Top Dispenser, 0.25 – 2.5 mL, supplied with suction tube, discharge tube, thread adapter
610.00
5 370 902
LabMax premium Bottle Top Dispenser, 0.5 – 5.0 mL, supplied with suction tube, discharge tube, thread adapter
610.00
5 370 903
LabMax premium Bottle Top Dispenser, 1.0 – 10.0 mL, supplied with suction tube, discharge tube, thread adapter
610.00
5 370 904
LabMax premium Bottle Top Dispenser, 2.5 – 25.0 mL, supplied with suction tube, discharge tube, thread adapter
846.45
5 370 905
LabMax premium Bottle Top Dispenser, 5.0 – 50.0 mL, supplied with suction tube, discharge tube, thread adapter
914.30
5 370 906
LabMax premium Bottle Top Dispenser, 10.0 – 100.0 mL, supplied with suction tube, discharge tube, thread adapter
1,151.30
5 370 801
LabMax airless Bottle Top Dispenser, 0.25 – 2.5 mL, supplied with suction tube, discharge tube, thread adapter
631.00
5 370 802
LabMax airless Bottle Top Dispenser, 0.5 – 5.0 mL, supplied with suction tube, discharge tube, thread adapter
631.00
5 370 803
LabMax airless Bottle Top Dispenser, 1.0 – 10.0 mL, supplied with suction tube, discharge tube, thread adapter
631.00
5 370 804
LabMax airless Bottle Top Dispenser, 2.5 – 25.0 mL, supplied with suction tube, discharge tube, thread adapter
847.16
5 370 805
LabMax airless Bottle Top Dispenser, 5.0 – 50.0 mL, supplied with suction tube, discharge tube, thread adapter
920.20
5 370 806
LabMax airless Bottle Top Dispenser, 10.0 – 100.0 mL, supplied with suction tube, discharge tube, thread adapter
1,244.45
5 377 310
Calcium Chloride Tube made of borosilicate glass with plastic coating, for moisture protection of bottle reagents
32.05
5 377 300
Check Valve made of borosilicate glass with plastic coating, to protect the environment from fumes and strong smells
25.55
8 212 001
One way filter for dust or bacteria, fits into ventilation channel of the operation mode selector, pore size 0.2µm, filter Ø 13mm, not sterile, pkg/100
Inquire
8 212 002
One way filter for dust or bacteria, fits into ventilation channel of the operation mode selector, pore size 0.2µm, filter Ø 30mm, not sterile, pkg/100
Inquire
8 212 003
One way filter for dust or bacteria, fits into ventilation channel of the operation mode selector, pore size 0.45µm, filter Ø 13mm, not sterile, pkg/100
Inquire
8 212 004
One way filter for dust or bacteria, fits into ventilation channel of the operation mode selector, pore size 0.45µm, filter Ø 30mm, not sterile, pkg/100
Inquire
8 214 001
One way filter for dust or bacteria, fits into ventilation channel of the operation mode selector, pore size 0.45µm, filter Ø 30mm, sterile, pkg/50
Inquire
8 214 002
One way filter for dust or bacteria, fits into ventilation channel of the operation mode selector, pore size 0.2µm, filter Ø 30mm, sterile, pkg/50
Inquire
5 375 002
Flexible Discharge PTFE Tube for LabMax, 80 cm, for 2.5 – 10.0mL, 2.0mm ID, with tubing support
33.36
5 375 012
Flexible Discharge PTFE Tube for LabMax, 80 cm, for 25 – 100mL,3.4mm ID, with tubing support
