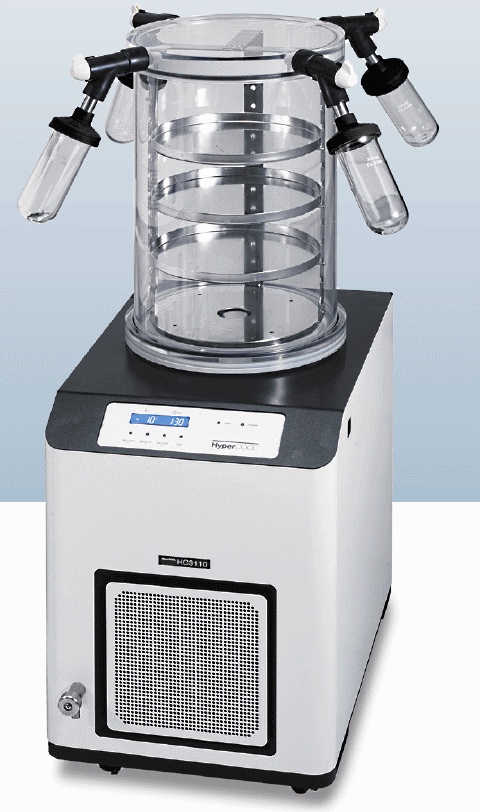

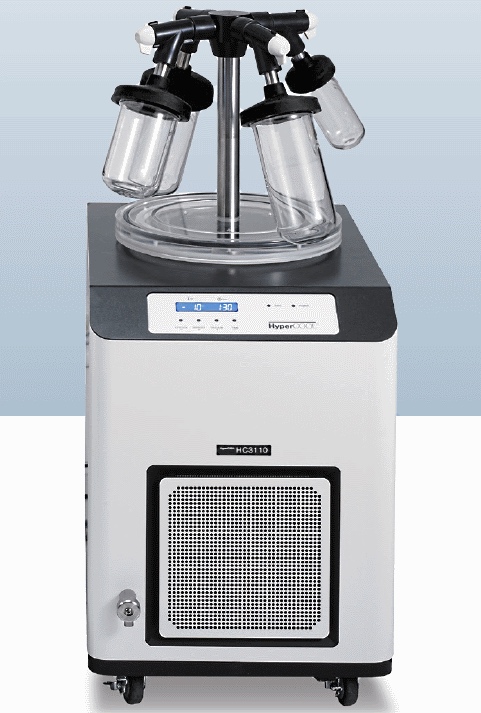

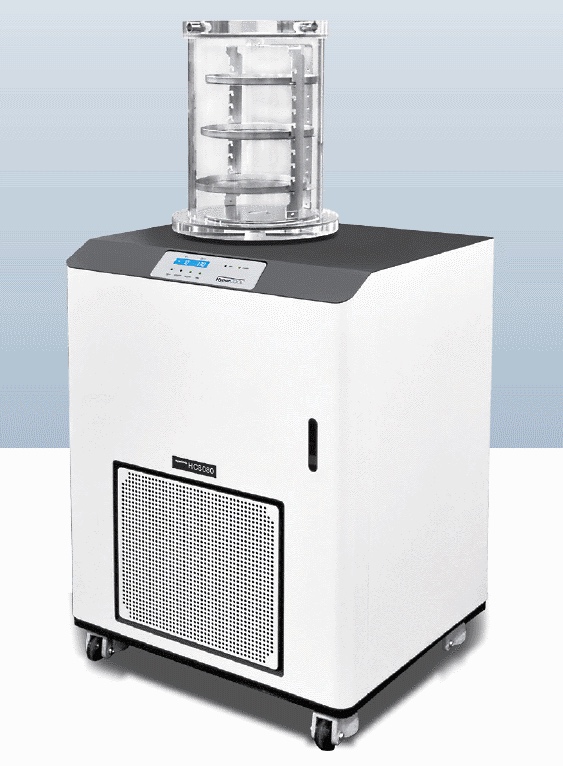

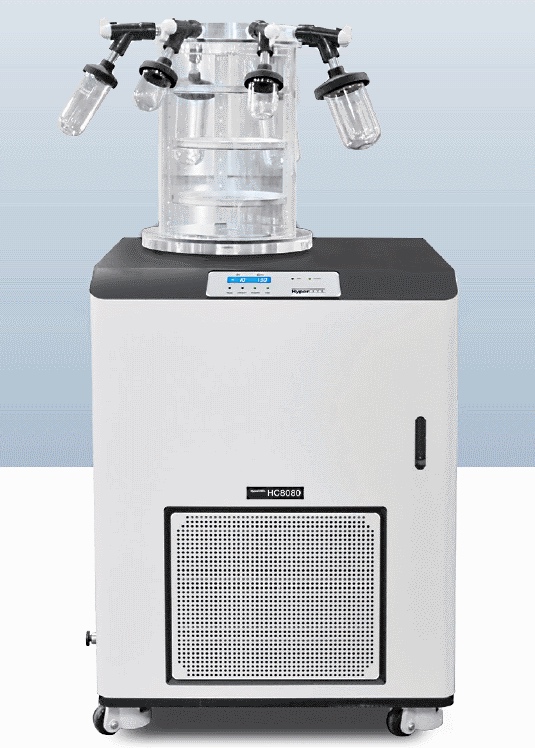

Freeze Dryers and Vacuum Concentrators, the HyperCOOL HC3055, HC3110 and High Capacity HC8080

  Overview

These Rocker Scientific Filtration Systems are complete in their components, designed to immediately set to work for laboratory filtration needs. The Rocker 300C Vacuum Pumps feature an oil free diaphragm driven design, the Chemker Vacuum Pumps are an oil free diaphragm design that can survive many harsher chemical environments.

The Rocker 300C or Chemker 300 and VF12 filtration systems have a range of capabilities to suit general laboratory liquid filtering as well as filtering of corrosive fluids, suspended solids testing, filtering in microbiology in which sterilization is necessary, or other specialized filtering tasks. Ideal for the purification of organic, corrosive liquids such as solvents (mobile phase) for HPLC.

Save time by filtering directly into a GL45 storage bottle without the need to transfer from a filtering flask. The patented Filtration Adaptor allows the whole set to be offered at a more competitive price compared to a common filtration set with a filtering flask.

A 220V version of each pump is available.

Features of the Rocker 300C-VF12 and Chemker 300C-VF12 Filtration Systems:
  • No air pollution and maintenance-free – Rocker and Chemker series pumps are oil and lubricant free thus eliminating oil contamination of the atmosphere
  • Saves time, as the VF12 set can filtrate and store solution directly in a GL45 storage bottle, without the need to transfer from typical filtering flask
  • Unique filtration adapter design can connect with GL45 storage bottles of any volume capacity


Specifications (Click here):  Freeze Dryers and Vacuum Concentrators, the HyperCOOL HC3055, HC3110 and High Capacity HC8080

NumberDescriptionPrice $
HC3055-110 HyperCOOL -55 °C Cooling Trap, ice capacity of 3 kg, teflon coated chamber, with digital display and time control, supplied with a vacuum hose and clamps, 110V, 50/60Hz
7,465.75
HC3055-220 HyperCOOL -55 °C Cooling Trap, ice capacity of 3 kg, teflon coated chamber, with digital display and time control, supplied with a vacuum hose and clamps, 220V, 50/60Hz7,472.51
HC3110-110 HyperCOOL -110 °C Cooling Trap, ice capacity of 3 kg, teflon coated chamber, with digital display and time control, supplied with a vacuum hose and clamps, 110V, 50/60Hz
10,333.38
HC3110-220 HyperCOOL -110 °C Cooling Trap, ice capacity of 3 kg, teflon coated chamber, with digital display and time control, supplied with a vacuum hose and clamps, 220V, 50/60Hz10,333.38
HC8080-110 HyperCOOL -80 °C Cooling Trap, ice capacity of 8 kg, teflon coated chamber, with digital display and time control, complete system with an integrated rotary vane pump and oil mist trap, 110V, 50/60Hz
17,875.47
HC8080-220 HyperCOOL -80 °C Cooling Trap, ice capacity of 8 kg, teflon coated chamber, with digital display and time control, complete system with an integrated rotary vane pump and oil mist trap, 220V, 50/60Hz17,875.47
HC-CPP HyperCOOL HC3055 and HC3110 Trap Plate, , for connecting vacuum hose to vacuum concentrator
715.20
HC-CPP-A HyperCOOL HC3055 and HC3110 Trap Plate, for connecting vacuum hose to vacuum concentrator with table A(GVCT-MA)
683.81
HC-CPB HyperCOOL HC3055 and HC3110 Acrylic Base for manifold or chamber
659.15
HC-CPM HyperCOOL HC3055 and HC3110 Acrylic Base for HC-MFB-8V659.15
HC-CPP(8) HyperCOOL HC8080 Trap Plate for connecting vacuum hose to vacuum concentrator
999.93
HC-CPB(8) HyperCOOL HC8080 Acrylic Base for manifold or chamber
934.91
HC-CPM(8) HyperCOOL HC8080 Acrylic Base for HC-MFB-8V934.91
HC-MFB-4V 4-Valve Manifold Basic, with four rubber valves on a stainless steel bar, 30 cm
894.56
HC-MFB-6V 6-Valve Manifold Basic, with six rubber valves on a stainless steel bar, 30 cm
1,064.95
HC-MFE-4V 4-Valve Manifold Extension, with four rubber valves on a stainless steel bar, 20 cm
721.92
HC-MFE-6V 6-Valve Manifold Extension, with six rubber valves on a stainless steel bar, 20 cm
894.56
HC-MFB-8V 8-Valve Manifold Basic, with 8 rubber valves on a stainless steel bar, 30 cm
1,827.23
HC-CH30P Acrylic Chamber Trunk and Plain Top, Ø 30 cm, height 40 cm
964.06
HC-CH30-4V Acrylic Chamber Trunk and Top with 4 rubber valves, Ø 30 cm, height 40 cm
1,506.62
HC-CH30-8V Acrylic Chamber Trunk and Top with 8 rubber valves, Ø 30 cm, height 40 cm
2,264.42
HC-CR25 Stainless Steel Rack, up to 5 trays can be inserted, with 3 sets of stainless steel shelves and trays, Ø 25 cm
766.76
HC-CR-TS A set of one tray and one shelf165.91
HC-GF40 Freeze drying glass flask, 40 mL, with rubber lid and stainless steel connector105.37
HC-GF80 Freeze drying glass flask, 80 mL, with rubber lid and stainless steel connector109.86
HC-GF120 Freeze drying glass flask, 120 mL, with rubber lid and stainless steel connector168.15
HC-GF150 Freeze drying glass flask, 150 mL, with rubber lid and stainless steel connector147.97
HC-GF300 Freeze drying glass flask, 300 mL, with rubber lid and stainless steel connector165.91
HC-GF600 Freeze drying glass flask, 600 mL, with rubber lid and stainless steel connector273.52
HC-GF900 Freeze drying glass flask, 900 mL, with rubber lid and stainless steel connector293.70
HC-GF1200 Freeze drying glass flask, 1200 mL, with rubber lid and stainless steel connector347.51
HC-GFT34 Rubber lid for 34 mm diameter flask (glass flask 40~80 mL)62.78
HC-GFT60 Rubber lid for 60 mm diameter flask (glass flask 120~300 ml)107.62
HC-GFT90 Rubber lid for 90 mm diameter flask (glass flask 600~1200 mL)201.78
V04CS12250-00 Stainless steel connector35.87
HC-AA Acetal adaptor for connecting vacuum hose to rubber valve51.57
HC-VH Vacuum hose with 2 clamps, 100 cm107.62
GVP-W2V20 High vacuum rotary vane pump, 0.4 kW (0.5HP), 200 L/min, 1X10-3 torr1,923.64
GVP-WOF150 Oil mist trap190.57
GZ-HC3055-M4B Freeze Dryer Combination with manifold, includes a -55 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, 4-valve manifold (30 cm Ø) with 4 rubber valves and vacuum hose with 2 clamps (freeze drying flasks are sold separately), 110 V, 60Hz
11,248.11
GZ-HC3110-M4B Freeze Dryer Combination with manifold, includes a -55 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, 4-valve manifold (30 cm Ø) with 4 rubber valves and vacuum hose with 2 clamps (freeze drying flasks are sold separately), 110 V, 60Hz
13,671.64
GZ-HC3110-CH4VR Freeze Dryer Combination with freeze drying chamber, includes a -110 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, acrylic chamber trunk and plain top plate (30 cm Ø x 40 cm height) and vacuum hose with 2 clamps (freeze drying flasks are sold separately), 110 V, 60Hz
13,747.98
GZ-HC3110-CHR Freeze Dryer Combination with freeze drying chamber and top plate for freeze drying flasks, includes a -110 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, acrylic chamber trunk and plain top plate for freeze drying flasks (30 cm Ø x 40 cm height) and vacuum hose with 2 clamps (freeze drying flasks are sold separately), 110 V, 60Hz
15,050.55
GZ-HC3110-CH8VR Freeze Dryer Combination with freeze drying chamber and top plate for freeze drying flasks, includes a -110 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, acrylic chamber trunk and plain top plate with 8 valves for freeze drying flasks (30 cm Ø x 40 cm height) and vacuum hose with 2 clamps (freeze drying flasks are sold separately), 110 V, 60Hz
16,245.76

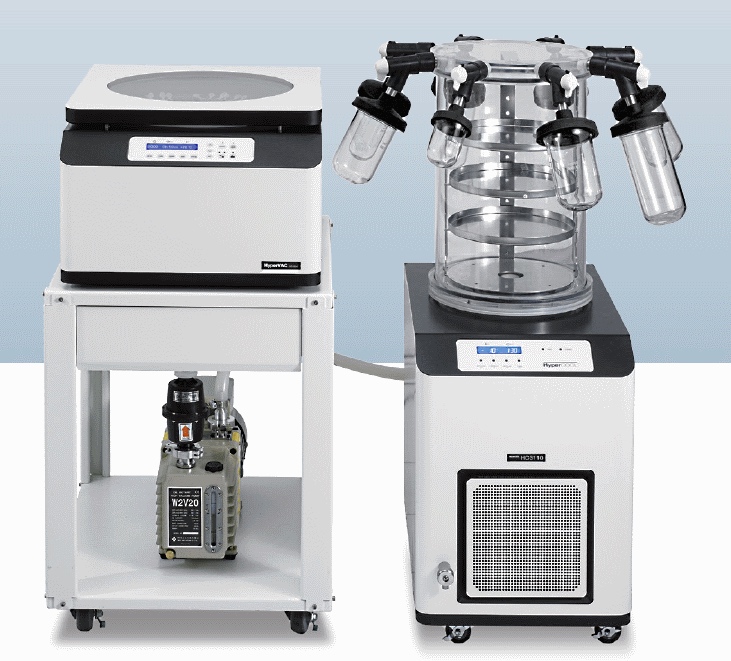

GZ-HC3110-CH8VRC Multi-Purpose Vacuum Concentrator and Freeze Drying System, includes a centrifuge evaporator and Type B table for accommodating a vacuum pump underneath, -110 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, 8-valve manifold (30 cm Ø) with 8 rubber valves, 8-valve manifold extension with 8 valves (20 cm) and vacuum hose with 2 clamps (freeze drying flasks and rotors are sold separately), 110 V, 60Hz
22,115.09
GZ-MHC3110-CH8VRC Multi-Purpose Vacuum Concentrator and Freeze Drying System, includes a centrifuge evaporator and Type B table for accommodating a vacuum pump underneath, -110 ºC refrigerated unit with rotary vane vacuum pump, oil mist trap, connections, acrylic base plate, acrylic chamber trunk and plain top plate with 8 valves for freeze drying flasks (30 cm Ø x 40cm height) and vacuum hose with 2 clamps (freeze drying flasks and rotors are sold separately), 110 V, 60Hz23,446.84
GZ-HC8080-CHR HyperCOOL Freeze Dryer with -80 °C cooling trap, chamber type 8 kg capacity, with digital display and time control, equipped with 3 shelf rack (requires appropriate vacuum pump and oil mist eliminator), 110 V, 60Hz
19,619.40
GZ-8080-CH4VR HyperCOOL Freeze Dryer with -80 °C cooling trap, multi-type 8 kg capacity, with digital display and time control, equipped with 3 shelf rack and chamber with 4 valves (requires appropriate vacuum pump and oil mist eliminator), 110 V, 60Hz.
19,790.40
GZ-8080-CH8VR HyperCOOL Freeze Dryer with -80 °C cooling trap, multi-type 8 kg capacity, with digital display and time control, equipped with acrylic base plate 3 shelf rack and chamber with 8 valves (requires appropriate vacuum pump and oil mist eliminator), 110 V, 60Hz
20,552.68
GZ-HC8080-CHR HyperCOOL Freeze Dryer with -80 °C cooling trap, 8 kg capacity, with digital display and time control, equipped with acrylic base plate, acrylic top plate and stainless steel rack with 3 shelves and racks (requires appropriate vacuum pump and oil mist eliminator), 110 V, 60Hz
20,457.30
GZ-8080-CH4VR HyperCOOL Freeze Dryer with -80 °C cooling trap, 8 kg capacity, with digital display and time control, equipped with acrylic base plate, acrylic top plate with 4 valves and stainless steel rack with 3 shelves and racks (requires appropriate vacuum pump and oil mist eliminator), 110 V, 60Hz
20,996.90
GZ-HC8080-CH8VR HyperCOOL Freeze Dryer with -80 °C cooling trap, 8 kg capacity, with digital display and time control, equipped with acrylic base plate, acrylic top plate with 8 valves and stainless steel rack with 3 shelves and racks (requires appropriate vacuum pump and oil mist eliminator), 110 V, 60Hz
21,321.42

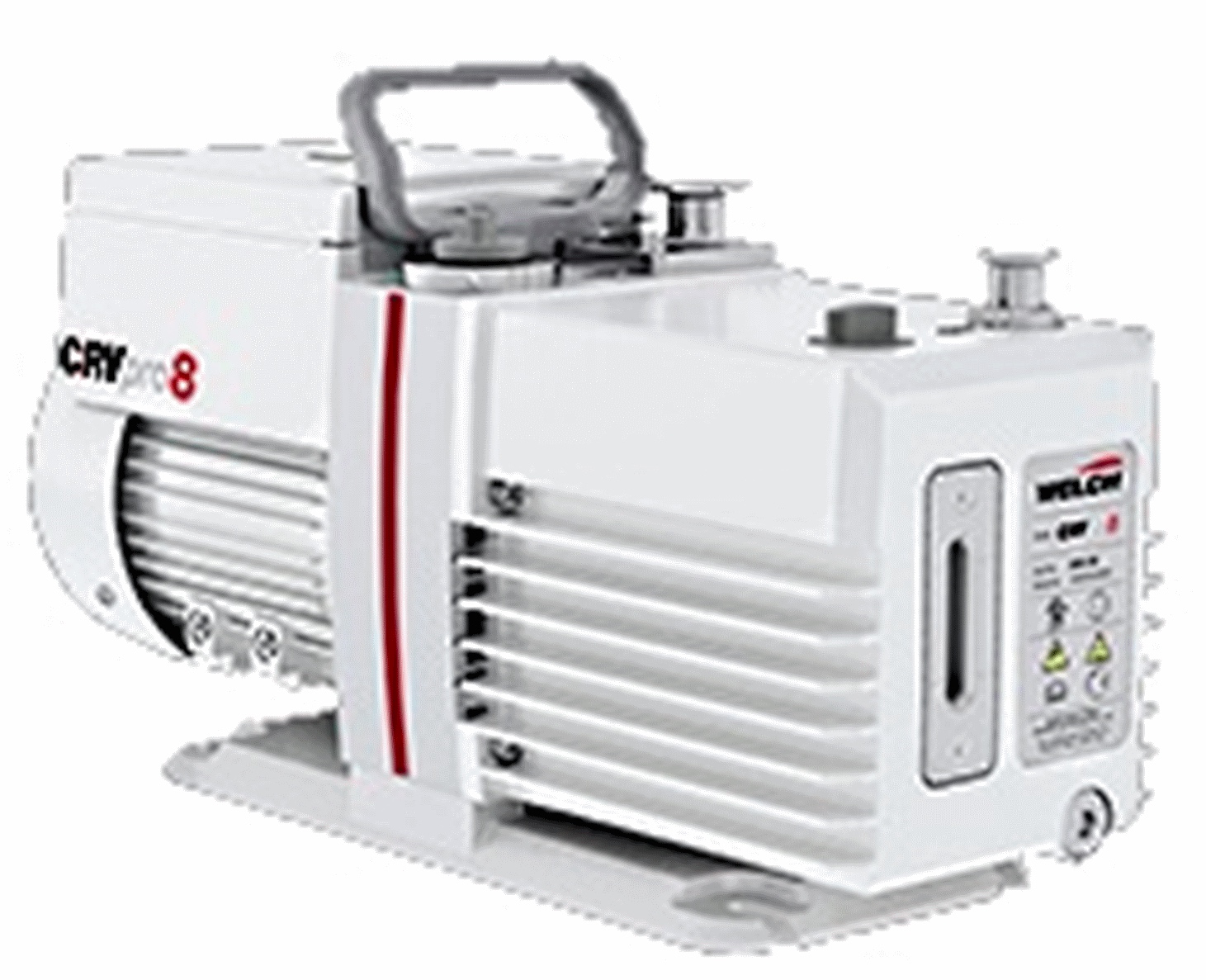

3081-01 CRVpro 8 Direct Drive High Vacuum Pump, 133 Liter/minute (8 m3/h), complete with vacuum pump oil, 2 centering rings, hose barb adapter, 2 clamps and motor overload protection, 115 V, 60Hz Features of the CRVpro Direct Drive High Vacuum Pumps: Cool Running – Enhanced air flow allows the pump to run at 10º cooler than standard rotary vane pumps. leading to reduced chemical activity within the pump and a slow down of the rate of oil consumption. Internal Surface Protection – Inside surface of the oil case has a PTFE coating and the outer surface of the pumping module has a black oxide coating, both of which act to slow metal corrosion and extend service intervals when coupled with fore-line traps. Large Oil Capacity – Enhances the dilution of chemical vapors that sublime from fore-line cold trap into the pump oil, minimizing the rate of oil breakdown and reducing chemical attacks within the pump.
4,214.20
705121 Cold trap for vacuum pump, requires Adapter # 7014011,197.00
701401 Adapter for cold trap # 70512148.15
