UV-Vis Detectors, APATITE Fixed Wavelength

  Overview

The APATITE Fixed Wavelength Detector is an economical filter based UV-detector for use in the range of 200 – 600 nm depending on the filter purchased or selected. Only one wavelength can be measured at any given time. Several filters could be purchased and loaded or reloaded by the customer as required for optimal detection.

The APATITE UV-Vis detector is easy to operate and has built-in diagnostics and keeps track of lamp operating hours. The detector performs automatic wavelength calibration after the lamp has been switched on.

The high intensity deuterium lamp is housed in a special socket that makes for easy exchange or replacement. The standard flow cell supplied is AC05 for analytical chromatography applications and it is located at the front of the housing for easy removal.

The APATITE Fixed Wavelength UV-Vis Detector can be used with any existing components or with the Spider C06 Fraction Collector and Injector available from Rose Scientific.

Features of the APATITE UV-Vis Fixed Wavelength Detector:
  • Measures specific wavelength as required
  • Spectrak range is based on interference filter purchases and installed
  • Prep-flow cell easy to change or replace
  • Built in clock counter to record lamp hours used
  • Service and diagnostic functions using keypad and display
  • Output signal available in digital form, unit controlled by an RS232 port


Specifications:  UV-Vis Detectors, APATITE Fixed Wavelength

NumberDescriptionPrice $
DE00000X Apatite Fixed Wavelength Type UV Detector with standard analytical flow cell 7900000X, order interference filter of wavelength needed separately (the most common is 254-12-0.5M, 254 nm)
4,204.78
254-12-0.5M Interference filter 254 nm306.00
214-12-0.5M Interference filter 214 nm504.90
280-10-0.5M Interference filter 280 nm504.90
312.6-10-0.5M Interference filter 313 nm504.90
340-10-0.5M Interference filter 340 nm504.90
560-10-0.5M Interference filter 560 nm165.75
460-12-05-M Interference filter 460 nm323.85
297FS10-12.5 Interference filter 297 nm522.75
228FS10-12.5 Interference filter 228 nm601.80
200.0 IF 13-0.5 Interference filter 200 nm601.80
220FS10-12.5 Interference filter 220 nm601.80
415-12(10)-0,5-M Interference filter 415 nm323.85
410-12(10)-0,5-M Interference filter 410 nm323.85
248-12-12.5 Interference filter 248 nm497.25
326-10-0.5M Interference filter 326 nm497.25
600FS10-12.5 Interference filter 600 nm329.46
7900000X Analytical flow cell HPLC 04Inquire

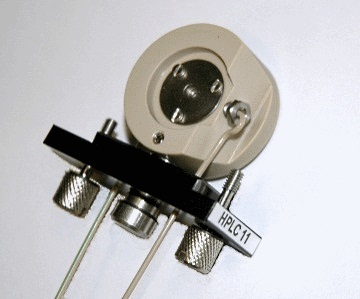

12S00003 Analytical flow cell HPLC 11 PEEK
Inquire
