Bio-suction Systems, the Vacuum Safe BioVac 225, BioVac 235 and BioVac 240

  Overview

The BioVac 225, BioVac 235 and BioVac 240 Bio-suction systems are designed for ease of use and convenience in pipetting and removing supernatants and other fluids such as liquid medium from petri dishes, microtiter plates, culture flasks and other similar containers.

The BioVac bio-suction systems utilize an oil free diaphragm vacuum pump for clean and low maintenance operation.

BioVac systems are equipped with double overflow protection to prevent any medium from flowing into the vacuum pump. Various aspiration adapters and a foot switch make these bio-suction systems user friendly and excellent for aspirating biofluids and other common fluids in chemistry, biochemistry, biology or medical laboratories.

Features of the BioVac 225, BioVac 235 and BioVac 240 Bio-suction Systems:
  • Oil free diaphragm vacuum pump, no lubricant required, clean operation
  • Defined temperature control in the bath with high accuracy
  • Automatic water level detection for heater protection
  • Variable water circulation speed
  • Double overflow protection with spill proof buoy and PTFE hydrophobic disc filter
  • External water circulation pump for heating external objects
  • Waste bottle and filter disc are autoclavable

BioVac 235

Specifications:  Bio-suction Systems, the Vacuum Safe BioVac 225, BioVac 235 and BioVac 240

NumberDescriptionPrice $
167225-11(22) BioVac 225 Bio-suction System, supplied with suction bottle (1 Liter), 0.2µm filter, suction tube and a single channel aspirator, 110V, 60Hz
1,130.00
167235-11(22) BioVac 235 Bio-suction System, supplied with suction bottles (2 × 1 liter), 0.2µm filter, suction tube and a single channel aspirator, 110V, 60Hz
1,524.25
167240-11(22) BioVac 240 Bio-suction System, supplied with suction bottle (2 Liter), 0.2µm filter, suction tube, a single channel aspirator and foot switch, 110V, 60Hz
1,694.88
199100-00 BioDolphin Suction Kit, includes handle, 1-channel tip adaptor, 1 channel stainless steel 80 mm adaptor, 1 channel stainless steel 40 mm adaptor, 8 channel stainless steel 40 mm adaptor, 8 channel tip connector (with ejector) and rack, Light Blue 633.75
199110-00 BioDolphin Suction Kit, includes handle, 1-channel tip adaptor, 1 channel stainless steel 80 mm adaptor, 1 channel stainless steel 40 mm adaptor, 8 channel stainless steel 40 mm adaptor, 8 channel tip connector (with ejector) and rack, Deep Blue
633.75
199120-00 BioDolphin Suction Kit, includes handle, 1-channel tip adaptor, 1 channel stainless steel 80 mm adaptor, 1 channel stainless steel 40 mm adaptor, 8 channel stainless steel 40 mm adaptor, 8 channel tip connector (with ejector) and rack, Pink 633.75
199130-00 BioDolphin Suction Kit, includes handle, 1-channel tip adaptor, 1 channel stainless steel 80 mm adaptor, 1 channel stainless steel 40 mm adaptor, 8 channel stainless steel 40 mm adaptor, 8 channel tip connector (with ejector) and rack, Green 633.75
199100-30 Handle 249.60
199100-46 1-channel tip adaptor 9.75
199100-48 1 channel stainless steel adaptor, 80 mm 23.40
199100-47 1 channel stainless steel adaptor, 40 mm 17.55
199100-49 8 channel stainless steel adaptor, 40 mm, pictured with handle
97.50
199100-50 8 channel tip connector with ejector, pictured with handle
167.70
199100-61 Rack 163.80

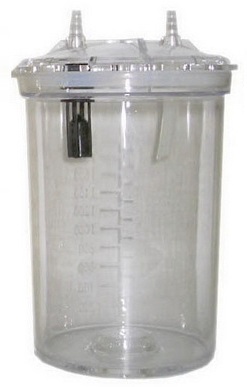

167200-31 1000 ml suction bottle, polycarbonate, autoclavable, built in over flow float sensor, 5/16 inch (8 mm) port thread
273.00

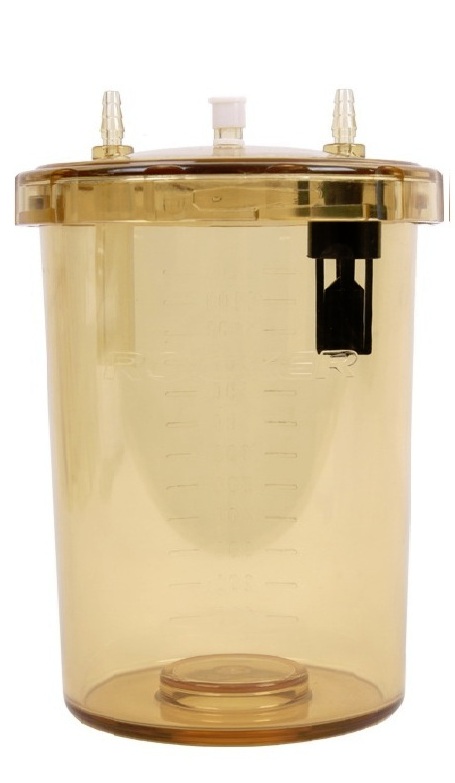

167200-32 2000 ml suction bottle, polycarbonate, autoclavable, built in over flow float sensor, 5/16 inch (8 mm) port thread
341.25

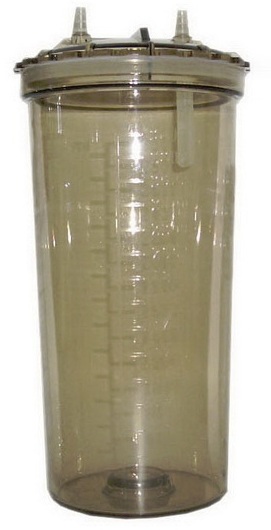

167200-33 3000 ml suction bottle, polycarbonate, autoclavable, built in over flow float sensor, 5/16 inch (8 mm) port thread
500.50

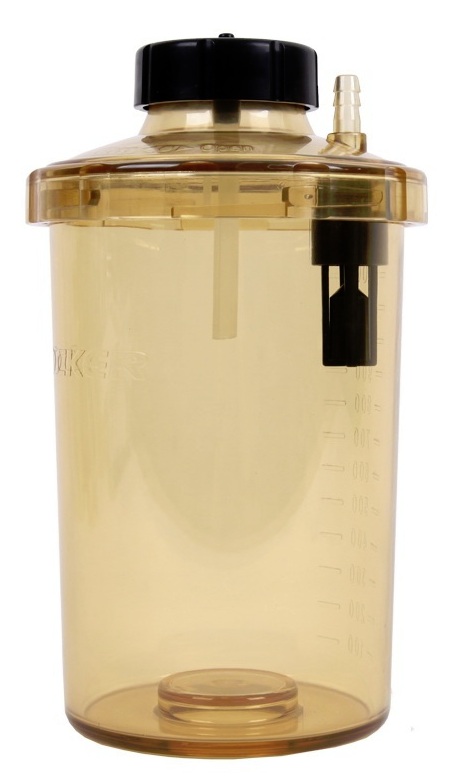

197000-11 1200 mL waste bottle and cap with suction fitting, PES (polyethersulfone) high strength, high temperature tolerance (180°C), built in over flow float sensor, autoclavable, 3/16 inch (5 mm) port thread
284.38
197000-12 1200 mL waste bottle, PES (polyethersulfone) high strength, high temperature tolerance (180°C), built in over flow float sensor, autoclavable, 3/16 inch (5 mm) port thread
238.88
167200-35 Disc filter for BioVac 225 and 235, PTFE sealed in a polypropylene housing, acts as a barrier to keep waste water from overflowing into the pump, autoclavable, 0.2 µm pore size, 37 mm diameter.
25.03
167200-36 Disc filter for BioVac 240 , PTFE sealed in a polypropylene housing, acts as a barrier to keep waste water from overflowing into the pump, autoclavable, 0.2 µm pore size, 50 mm diameter. 31.55
167200-38 Silicone tube,100cm 20.48
167110-16 Stopper (silicon rubber for manifold) 20.48
167200-39 Rack for suction bottle 129.68
167200-40 Foot switch for BioVac 240 68.25
167200-41 Universal foot switch 72.80
